Derived Units & Homogeneity

Some quantities are measured directly. Others are calculated from measured quantities. Their units must show the same calculation.

Replacing every symbol with base units lets you build a derived unit and check whether an equation can be correct.

Building a derived unit

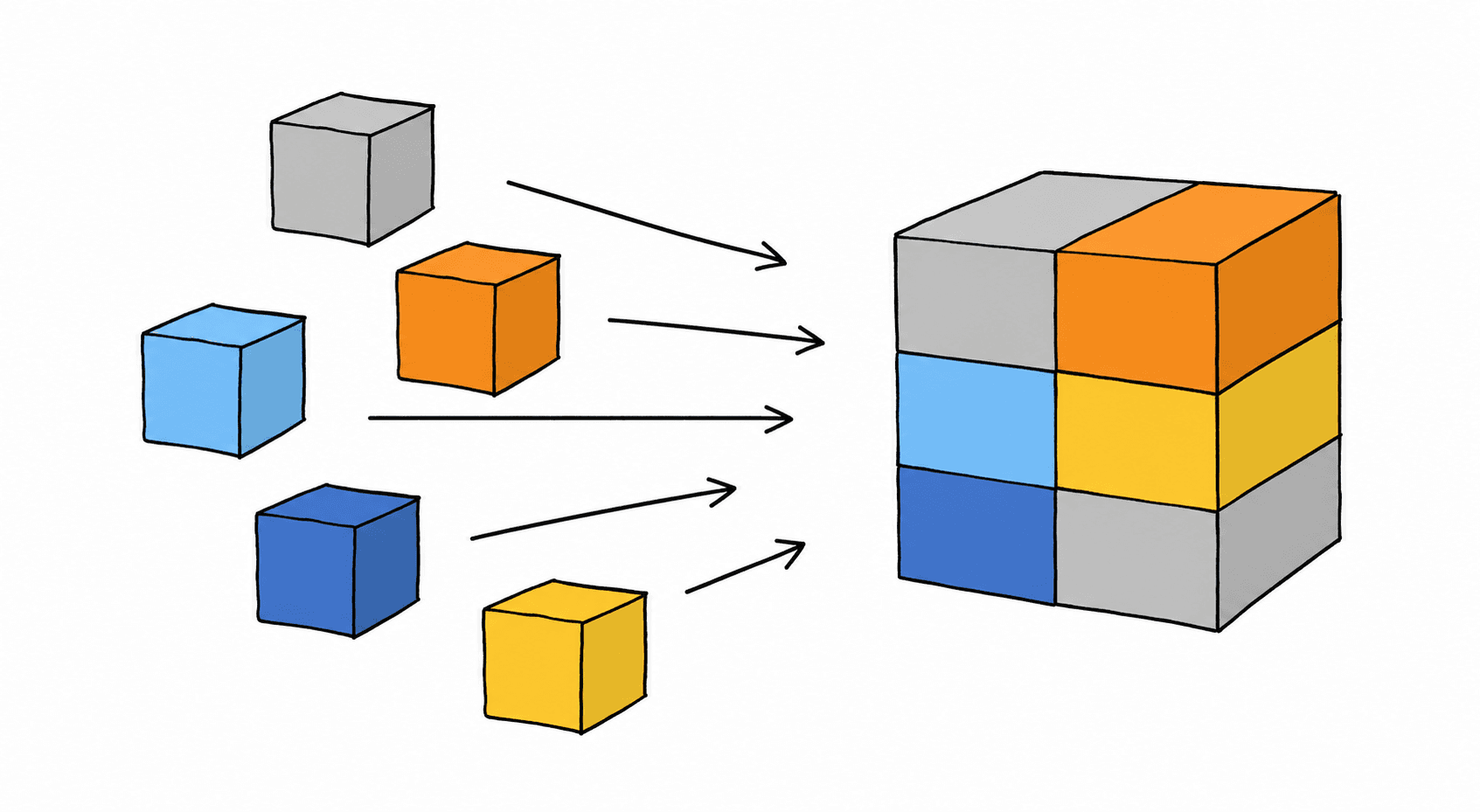

A is any unit built from base units.
To find one, start from the quantity's defining equation and replace each symbol with its base units.

A dynamics trolley travels along a straight track. A metre rule and a stopwatch are ready to measure its distance and travel time. — Distance and time are measured directly. Speed is calculated from them, so m s⁻¹ is a derived unit.

The trolley's distance is measured in metres and its time is measured in seconds. Therefore the calculated speed has the unit:

\text{unit of speed} = \frac{\text{m}}{\text{s}} = \text{m s}^{-1}

Quantity	Start from	SI base units
force	F = ma	kg m s⁻²
energy	E = Fd	kg m² s⁻²
pressure	p = F / A	kg m⁻¹ s⁻²

These examples use relations taught later in the course. At this point, a question may supply the relation; focus on replacing each quantity with its base units.

Learn the usual named units, but do not guess their base-unit form. Start from a defining equation, substitute base units and simplify.

Worked example

Base units of power

Definition: $\text{power} = \dfrac{\text{work}}{\text{time}}$ .
Work has the units of energy: $\text{kg m}^2\,\text{s}^{-2}$ .
Divide by time: $\dfrac{\text{kg m}^2\,\text{s}^{-2}}{\text{s}} = \text{kg m}^2\,\text{s}^{-3}$ .

Answer

\text{power} = \text{kg m}^2\,\text{s}^{-3}

(9702/22/F/M/24 Q1(b))

Your turn9702/13/O/N/21 Q2 · 1 mark · adapted

Express the ohm in SI base units. Use resistance = potential difference ÷ current and potential difference = power ÷ current.

Show worked answer

First the volt: $[V] = \dfrac{\text{kg m}^2\,\text{s}^{-3}}{\text{A}} = \text{kg m}^2\,\text{s}^{-3}\,\text{A}^{-1}$ .
Then the ohm: $[R] = \dfrac{[V]}{\text{A}} = \text{kg m}^2\,\text{s}^{-3}\,\text{A}^{-2}$ .

Answer

\text{kg m}^2\,\text{s}^{-3}\,\text{A}^{-2}

Checking an equation: homogeneity

A physical equation is when every term has the same base units. A term is one complete part separated by $+$ , $-$ or the equals sign.
If even one term has different units, the equation is wrong. Units cannot be added to or equated with a different kind of quantity.
Matching units cannot prove an equation is right. A pure number like $\tfrac12$ or $2\pi$ has no units, so this check cannot see it.
In $s = vt$ , $s$ is displacement, $v$ is velocity and $t$ is time. The left side has unit m and the right side reduces to the same unit:

\text{m s}^{-1} \times \text{s} = \text{m}

The units match, so the equation passes the homogeneity check. This does not prove that the numerical factor or physical model is correct.

Worked example

Testing an equation for homogeneity

A mass hangs on a spring with spring constant $k$ . Test whether $T = 2\pi\sqrt{m/k}$ is homogeneous.

Find the base units of $k$ from $F = kx$ : $[k] = \dfrac{\text{kg m s}^{-2}}{\text{m}} = \text{kg s}^{-2}$ .
Then $\left[\dfrac{m}{k}\right] = \dfrac{\text{kg}}{\text{kg s}^{-2}} = \text{s}^2$ .
The square root gives $\sqrt{\text{s}^2} = \text{s}$ , which matches $T$ . The $2\pi$ has no units, so the equation is homogeneous.

Answer

\text{homogeneous}

(9702/12/F/M/24 Q3)

Worked example

One change: find the unknown power

$T = 2\pi(L/g)^{n}$ is homogeneous. Find $n$ .

$\left[\dfrac{L}{g}\right] = \dfrac{\text{m}}{\text{m s}^{-2}} = \text{s}^2$ .
Right side: $(\text{s}^2)^{n} = \text{s}^{2n}$ . Left side: $\text{s}$ .
Match the powers: $2n = 1$ , so $n = \tfrac{1}{2}$ .

Answer

n = \tfrac{1}{2}

(9702/12/M/J/25 Q4)

Worked example

One more change: base units of a constant

The power output of a star is $P = \sigma A T^4$ , where $A$ is area and $T$ is temperature. Find the base units of the constant $\sigma$ .

Make the constant the subject: $\sigma = \dfrac{P}{A T^4}$ .
Substitute base units:
$[P]=\text{kg m}^2\,\text{s}^{-3}$
$[AT^4]=\text{m}^2\,\text{K}^4$
$[\sigma]=\text{kg s}^{-3}\,\text{K}^{-4}$

Answer

[\sigma] = \text{kg s}^{-3}\,\text{K}^{-4}

(9702/13/O/N/24 Q3)

These three examples are the three ways the exam asks it: test an equation, find an unknown power, or find the base units of a constant. All three use the same skill: they replace each symbol with its base units, then compare.

Common mistake

Do not give units to a pure-number constant (

2\pi

and

4\pi^2

have none). And when one side has several terms, reduce every term, not just the first one.
